TEMA

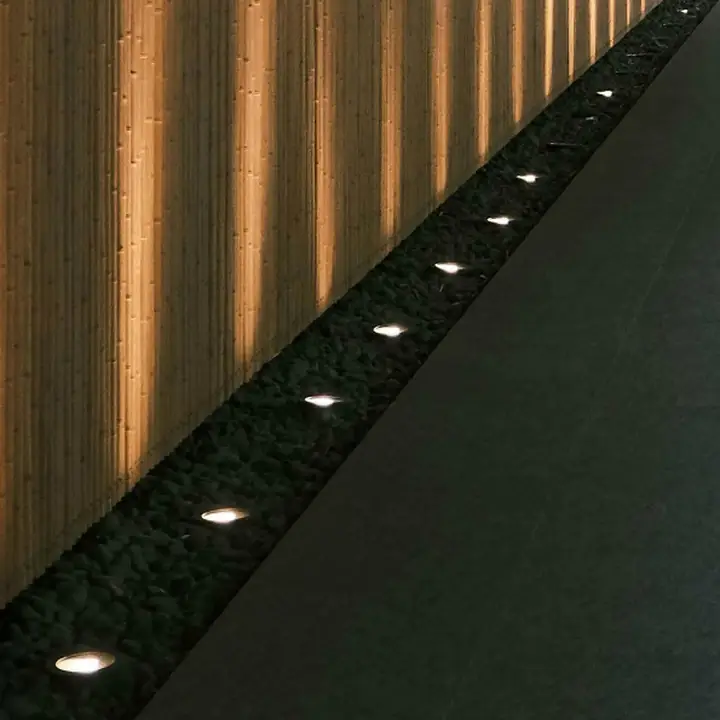

Tema is a series of inground luminaires featuring a tilting mechanism of +/- 30 degrees, allowing for precise lighting design to highlight objects at specific angles. The light source is equipped with hexcell louvers to minimize glare from all directions. It is available in three wattage options.
Specifications
Details
3–9WCRI ≥90IP67
TEMA
Tilting In-Ground Light
3–9WCRI ≥90IP67
- Model
- CH 2376-3W / CH 2376-6W / CH 2376-9W
- Body Colour
- Stainless Steel
- CCT
- 3000K
- LED
- Cree
- Flux
- 120 lm / 270 lm / 300 lm
- Beam Angle
- 20°
- Tilt
- ±30°
- Material
- SS-316 + ADC12
- IP Rating
- IP67
- CRI
- ≥90
- Supply
- DC 24V
- Body dimensions
- Ø 90 / Ø 120 / Ø 138 mm
- Cut-out
- Ø 80 × 95 mm / Ø 104 × 101 mm / Ø 120 × 113 mm
